Place of Origin:
Guangdong, China
اسم العلامة التجارية:
Hilink
إصدار الشهادات:
CE Rohs
Model Number:
100BASE-BXU/D-40
| Attribute | Value |
|---|---|
| Product Name | 100BASE-BXU/D-40 |
| Data Rate | 100BASE |
| Reach | 40KM |
| Operating Temperature | 0 to 70℃ |

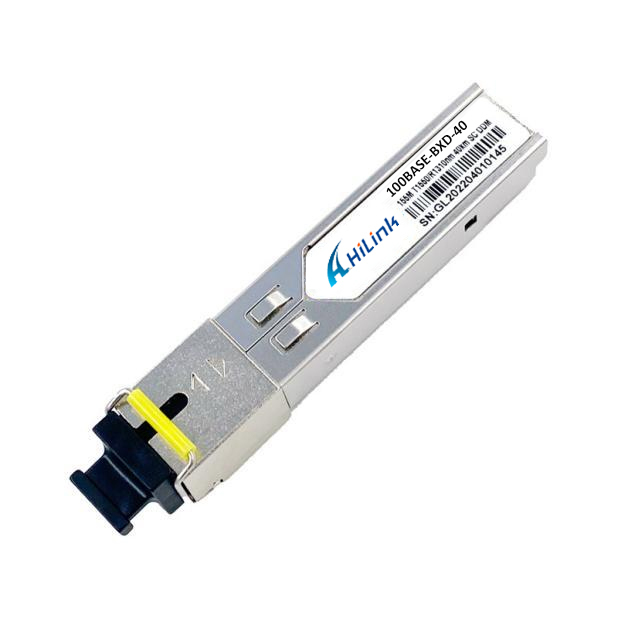

Hilink 155Mb/s BiDi Single SC, SMF, 1310nm Tx, 1550nm Rx, FP-LD, 40km SFP Transceiver
Hilink 100BASE Bi-Directional transceiver is a high performance, cost effective module, which is compliant with SC Optics interface with built in WDM for Bi-Directional serial optical data communication applications. This module is designed for Single-Mode single fiber, operates at the normal wavelength of 1310/1550nm. The transmitter section incorporates FP and driver IC with temperature compensation and automatic power control circuit, which makes the transmitter section output power and Extinction ration stabled in operation temperature. The receiver section incorporates an efficient InGaAs photodiode and transimpedance with AGC for wide dynamic range.
OEM/ODM order is available
We promise all the advertised optical modules are brand new and absolutely never use old and refurbished materials. All the optical modules have been through functional test and aging test. We provide 3 years warranty for all the optical transceivers from the date of shipment.
