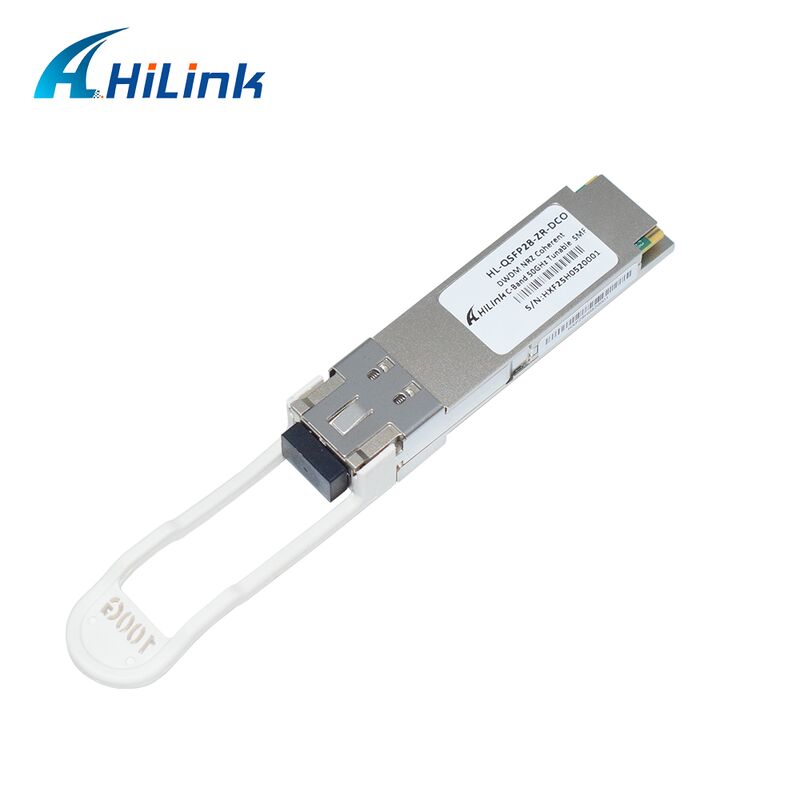

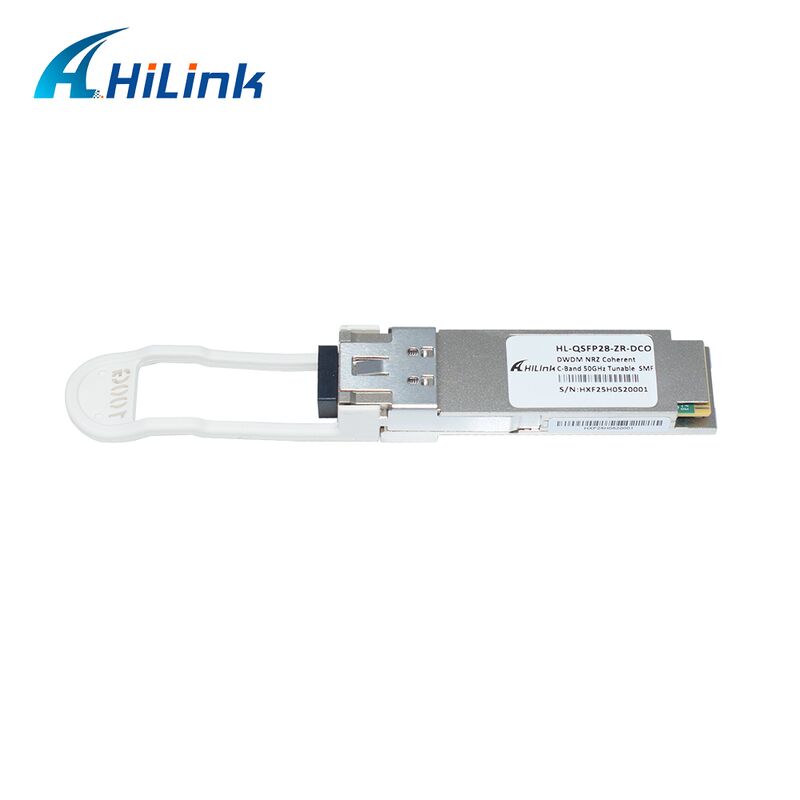

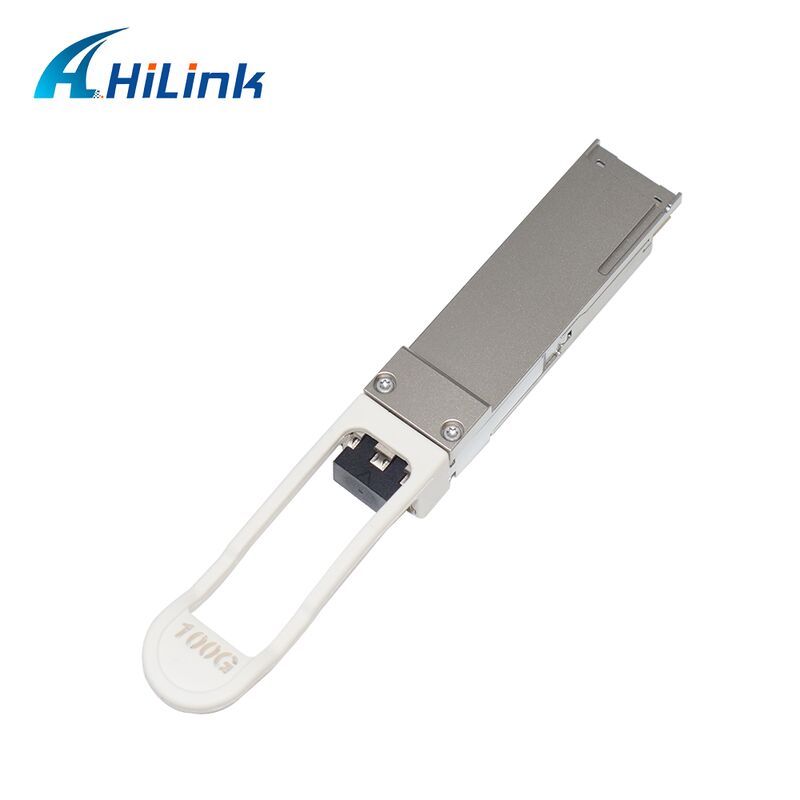

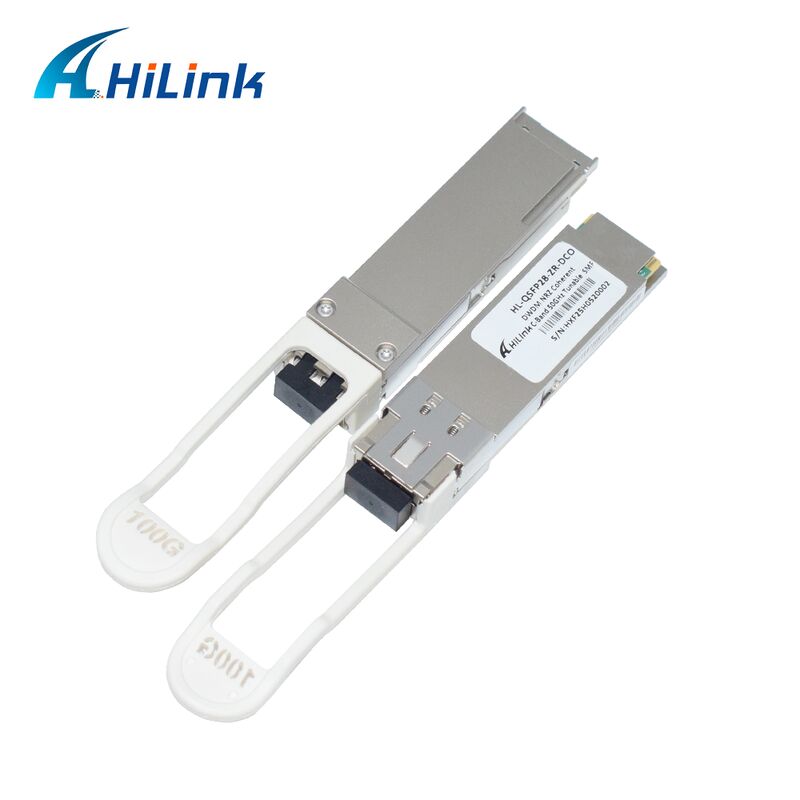

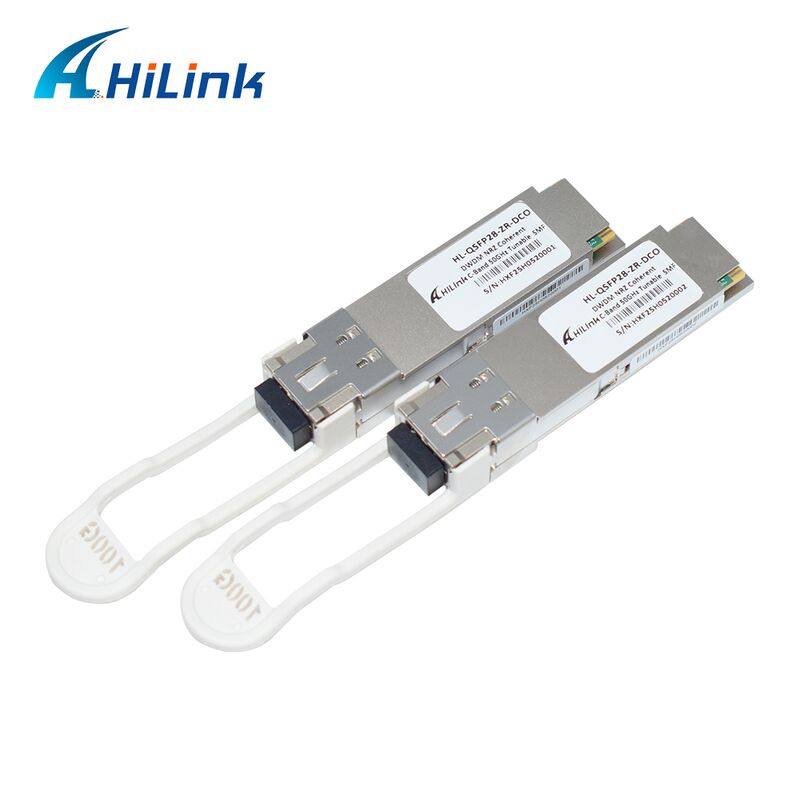

Name: HL-QSFP28-DCO 100G ZR QSFP28 Digital Coherent Optics Transceiver with 80km Transmission Distance
Brand: Shenzhen HiLink Technology Co.,Ltd.
SKU: HL-QSFP28-DCO
Price: 130.00 USD
Availability: InStock

المنزل > المنتجات > وحدة الإرسال والاستقبال الضوئية >

HL-QSFP28-DCO 100G ZR QSFP28 Digital Coherent Optics Transceiver with 80km Transmission Distance

100G Data Rate QSFP28 Transceiver,80km Transmission Distance Optical Transceiver Module,Digital Coherent Optics Transceiver

80km Transmission Distance Optical Transceiver Module

Digital Coherent Optics Transceiver

مكان المنشأ:

قوانغدونغ، الصين

اسم العلامة التجارية:

Hilink

إصدار الشهادات:

CE RoHs

رقم الموديل:

HL-QSFP28-DCO

اتصل بنا

اطلب اقتباس

HL-QSFP28-DCO 100G ZR QSFP28 Digital Coherent Optics Transceiver with 80km Transmission Distance

تفاصيل المنتج

اسم المنتج:

100 جرام ZR QSFP28 DCO

معدل البيانات:

100 جرام

مسافة:

80 كم

ضمان:

3 سنوات

دي دي ام:

نعم

موعد التسليم:

3-7 أيام عمل

تصنيع المعدات الأصلية:

يدعم

شروط الدفع والشحن

الحد الأدنى لكمية

1 قطعة

الأسعار

قابل للتفاوض

تفاصيل التغليف

الحزمة العادية أو OEM

وقت التسليم

5-8 أيام عمل

شروط الدفع

ل / c، / تي تي، ويسترن يونيون

منتجات ذات صلة

10G SFP+ DWDM Transceiver 80km 100km CH17~61 120km CH20~55 100GHz Industrial Commercial Temperature

احصل على افضل سعر

10G DWDM SFP+ Optical Transceiver Module with 40km Distance 100GHz Channel Spacing and CH17~61 Wavelength

احصل على افضل سعر

كابلات الحزام المخصصة لـ MTP / MPO

احصل على افضل سعر

كابلات توصيل MTP/MPO مخصصة من Hilink

احصل على افضل سعر

اتصل بنا

اتصل بنا الآن

وصف المنتج

HL-QSFP28-DCO 100G ZR QSFP28 Digital Coherent Optics Transceiver

Product Overview

The HL-QSFP28-DCO is a high-performance Digital Coherent Optics transceiver supporting 100G transmission for edge network applications with extended reach capabilities.

Key Features

Digital Coherent Optics module in hot-pluggable QSFP28 form factor
IEEE 100G Ethernet (CAUI-4) or ITU-T 100G OTN (OTL4.4) compliant host interface
100G optical coherent interface with DP-DQPSK modulation and Staircase FEC
Transmission reach: Up to 80km unamplified (loss limited) or 120km amplified (dispersion limited, optionally extendable to 300km)
Full C-band tunable, 50GHz or 100GHz grid with optional Flextune™ automatic wavelength tuning
Case temperature range: 0°C to 70°C (C-temp) or -40°C to 85°C (I-temp)
Power dissipation: < 5.5W (C-temp) or < 6.0W (I-temp)
Remote digital diagnostics monitoring

Applications

Access and aggregation networks
Cable TV networks
Wireless front-haul & mid-haul

Technical Specifications

The Coherent HL-QSFP28-DCO QSFP28 Digital Coherent Optics (DCO) transceiver supports 100G transmission over distances up to 120km (dispersion limited, optionally extendable to 300km) for edge network applications. On the host side, the module can accommodate IEEE 100GE Ethernet or ITU-T OTN OTU4 signals. The line side coherent interface specifications are aligned with IEEE Std. 802.3-2022 100GBASE-ZR and ITU-T G.698.2 DW50U-8A2(C)F / DW100U-8A2(C)F, which define a 27.95GBd dual-polarization differential QPSK modulation format.

The module is offered in both commercial temperature (0°C to 70°C) and industrial temperature (-40°C to 85°C) versions, with power dissipation of less than 6.0W. The local oscillator laser is full C-band tunable and the transceiver can optionally be configured to support Flextune™ automatic wavelength tuning.

The transceiver module is compliant to the Specification for QSFP+ 28 Gb/s 4X Pluggable Transceiver Solution (QSFP28) and specifications referenced therein. The transceiver is RoHS compliant and lead-free per Directive 2011/65/EU.

Compliance and Standards

This product meets industry standards for quality and environmental compliance, including RoHS Directive 2011/65/EU requirements.
