مكان المنشأ:
قوانغدونغ، الصين
اسم العلامة التجارية:
Hilink
إصدار الشهادات:
CE Rohs
رقم الموديل:
QSFP28-BXU/D-40KM

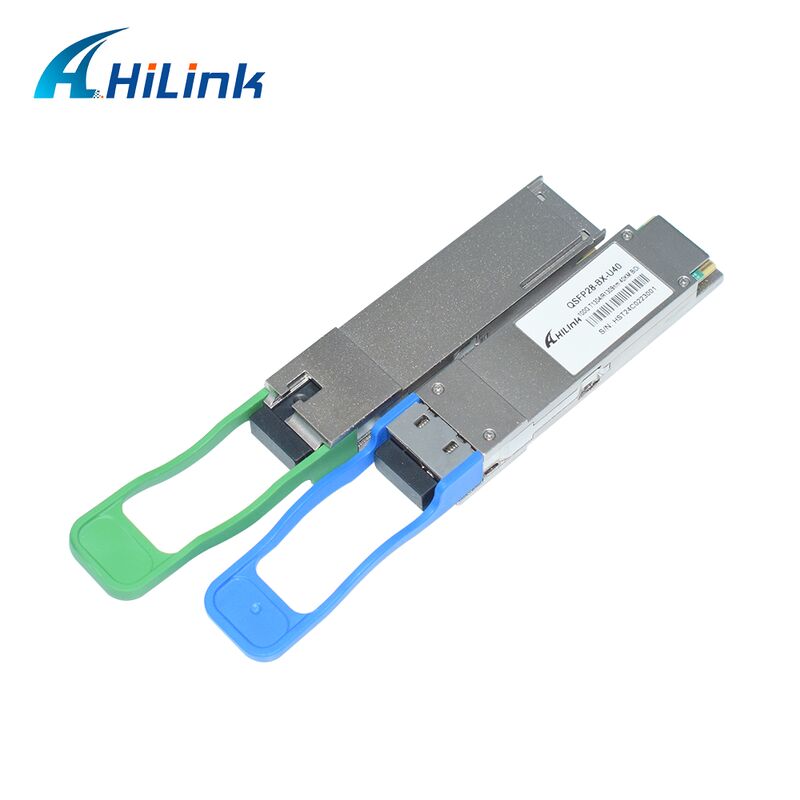

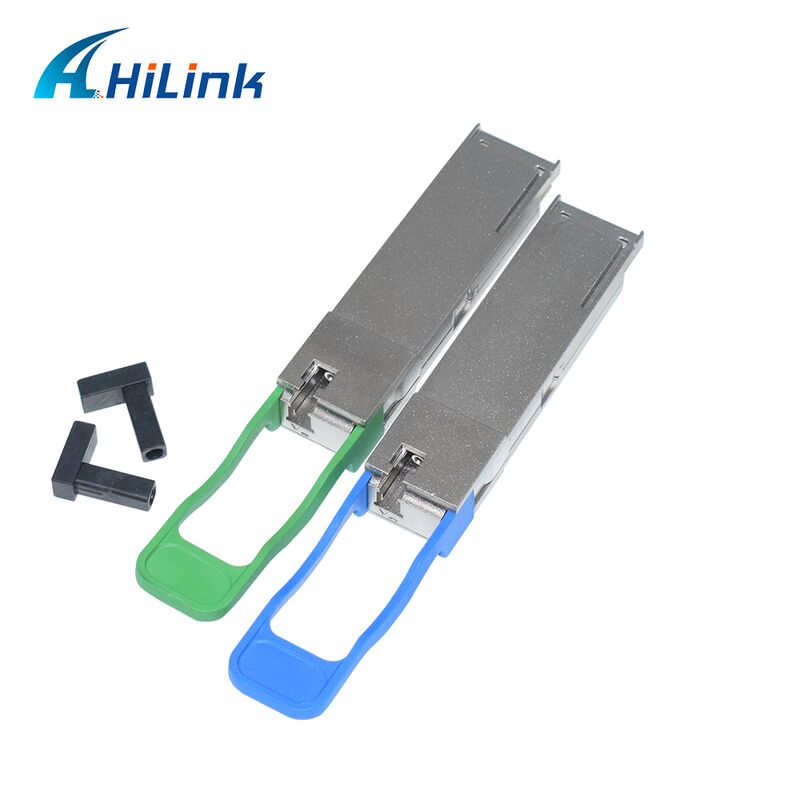

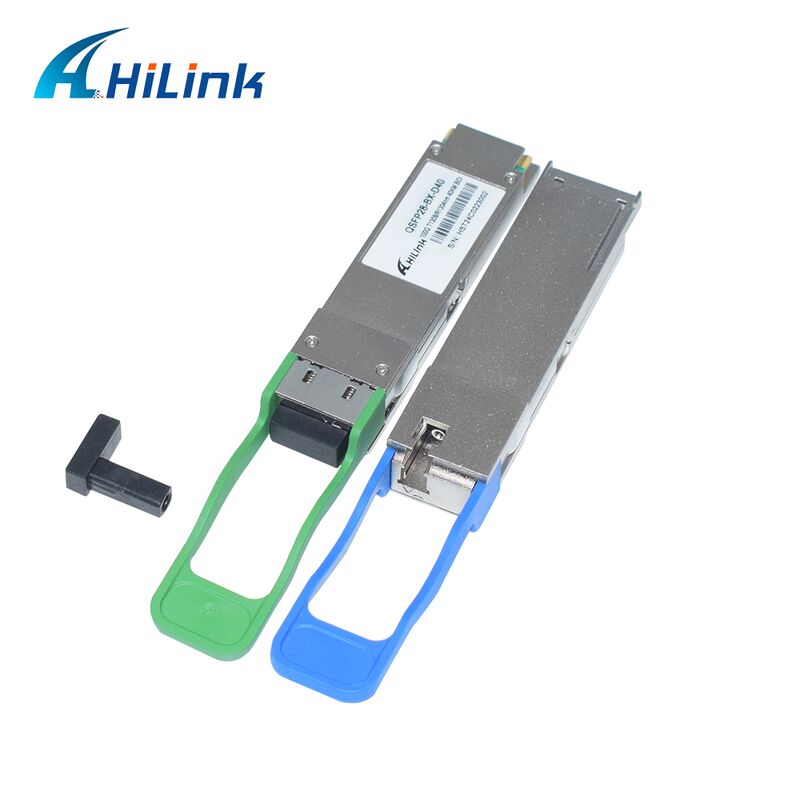

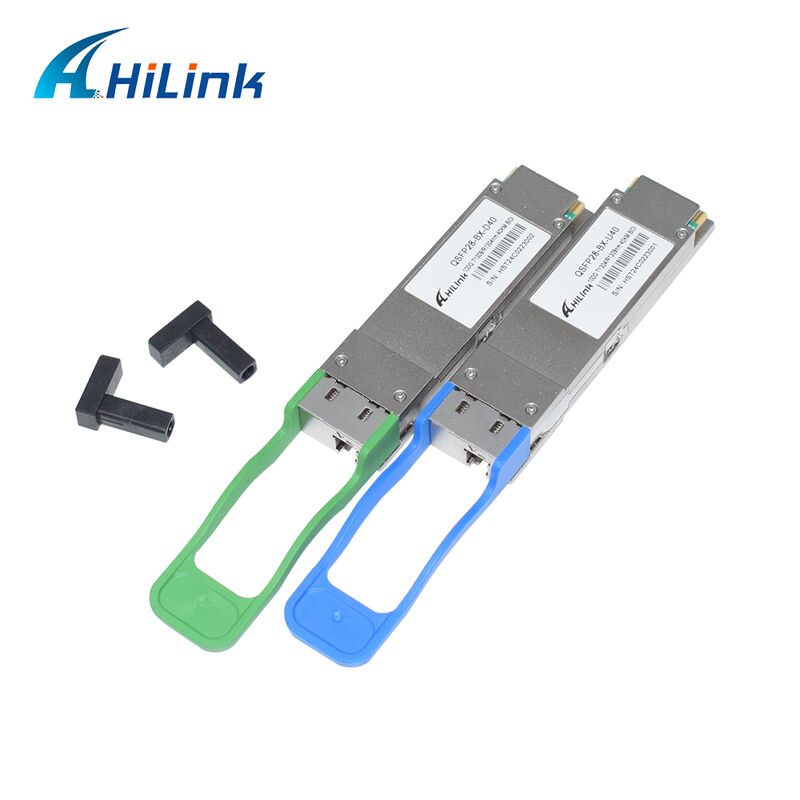

QSFP28-BX-U40 100G QSFP28 40KM BIDI 1304/1309nm Optical Transceiver
The QSFP28 ER1 BIDI transceiver supports single 53.125GBd optical lane. Designed for use up to 106.25Gb/s data rate and up to 40km link length.
| Part No. | Package | Data Rate | Laser | Optical Power | Detector | Sensitivity | Temperature | Reach | Other |
|---|---|---|---|---|---|---|---|---|---|
| QSFP28-BX-U40 | QSFP28 | Up to 106.25G | 1304.58nm EML | 1.5 ~ +7.1dBm | APD | -15.2+TECQ dBm | 0~70℃ | 40km | DDM |
| QSFP28-BX-D40 | QSFP28 | Up to 106.25G | 1309.14nm EML | 1.5 ~ +7.1dBm | APD | -15.2+TECQ dBm | 0~70℃ | 40km | DDM |
OEM/ODM orders available
We guarantee all advertised optical modules are brand new and never use old or refurbished materials. All optical modules undergo comprehensive functional testing and aging tests. We provide a 3-year warranty for all optical transceivers from the date of shipment.
