Name: Hilink QDD-400G-SR8 QSFP-DD Transceiver 400G Data Rate 850nm Wavelength MPO-16 Connector with Diagnostic Monitoring
Brand: Shenzhen HiLink Technology Co.,Ltd.
SKU: HL-QDD-400G-SR8
Price: 125.00 USD
Availability: InStock

المنزل > المنتجات > وحدة الإرسال والاستقبال الضوئية >

Hilink QDD-400G-SR8 QSFP-DD Transceiver 400G Data Rate 850nm Wavelength MPO-16 Connector with Diagnostic Monitoring

مكان المنشأ:

قوانغدونغ، الصين

اسم العلامة التجارية:

Hilink

إصدار الشهادات:

CE RoHs

رقم الموديل:

HL-QDD-400G-SR8

اتصل بنا

اطلب اقتباس

Hilink QDD-400G-SR8 QSFP-DD Transceiver 400G Data Rate 850nm Wavelength MPO-16 Connector with Diagnostic Monitoring

تفاصيل المنتج

اسم المنتج:

QDD-400G-SR8

معدل البيانات:

400 جرام

الطول الموجي:

850 نانومتر

مسافة:

100 م

موصل:

MPO-16

ضمان:

3 سنوات

إصدار الشهادات:

RoHS

موعد التسليم:

3-7 أيام عمل

تصنيع المعدات الأصلية:

يدعم

شروط الدفع والشحن

الحد الأدنى لكمية

1 قطعة

الأسعار

EXW Price: 120USD/PCS~130USD/PCS

تفاصيل التغليف

الحزمة العادية أو OEM

وقت التسليم

5-8 أيام عمل

شروط الدفع

ل / c، / تي تي، ويسترن يونيون

منتجات ذات صلة

Hilink 100G QSFP28 Optical Transceiver with 100km Distance 1295~1304nm Wavelength and SOA PIN Detector

احصل على افضل سعر

Hilink QDD-400G-SR8 QSFP-DD Transceiver 400G Data Rate 850nm Wavelength MPO-16 Connector with Diagnostic Monitoring

احصل على افضل سعر

مرسل HL-SFP-T 1000BASE-T و 10/100/1000BASE-T النحاس SFP مع رابط RJ-45

احصل على افضل سعر

Hilink 10-100BASE-T 100BASE-T 100M RJ45 Copper SFP Transceiver

احصل على افضل سعر

اتصل بنا

اتصل بنا الآن

وصف المنتج

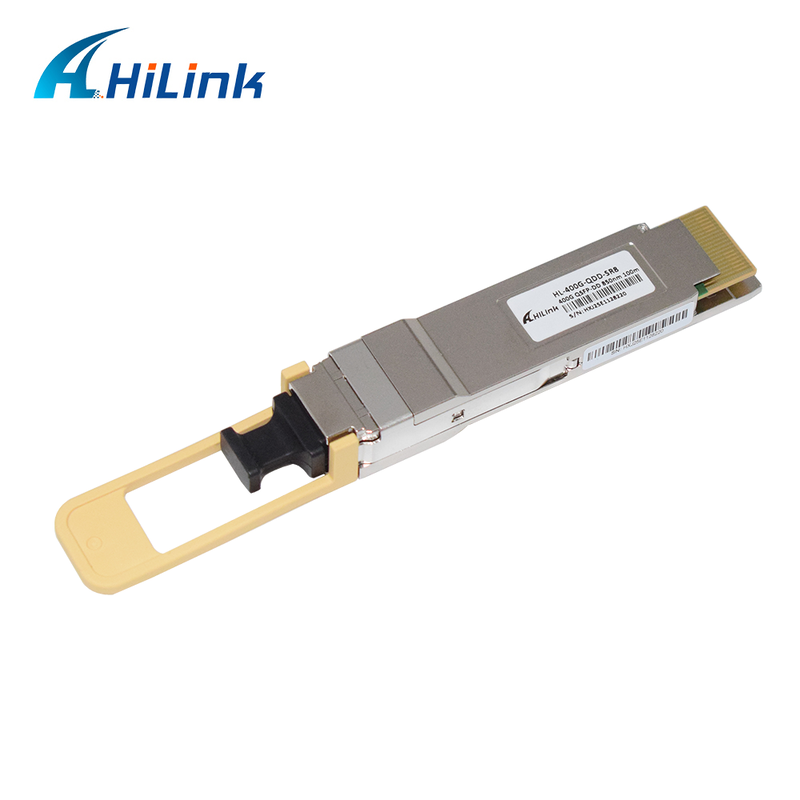

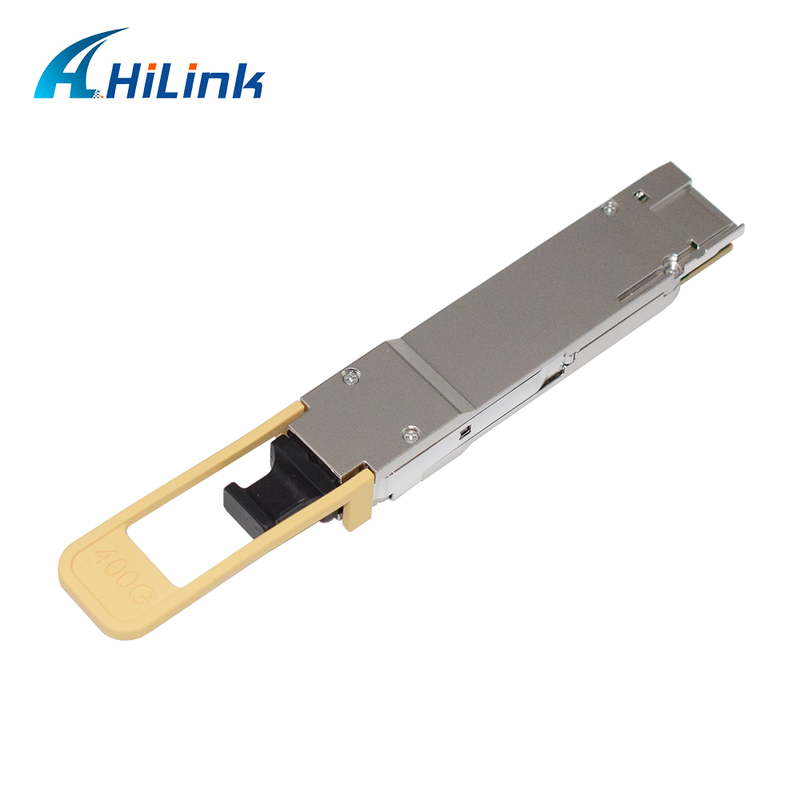

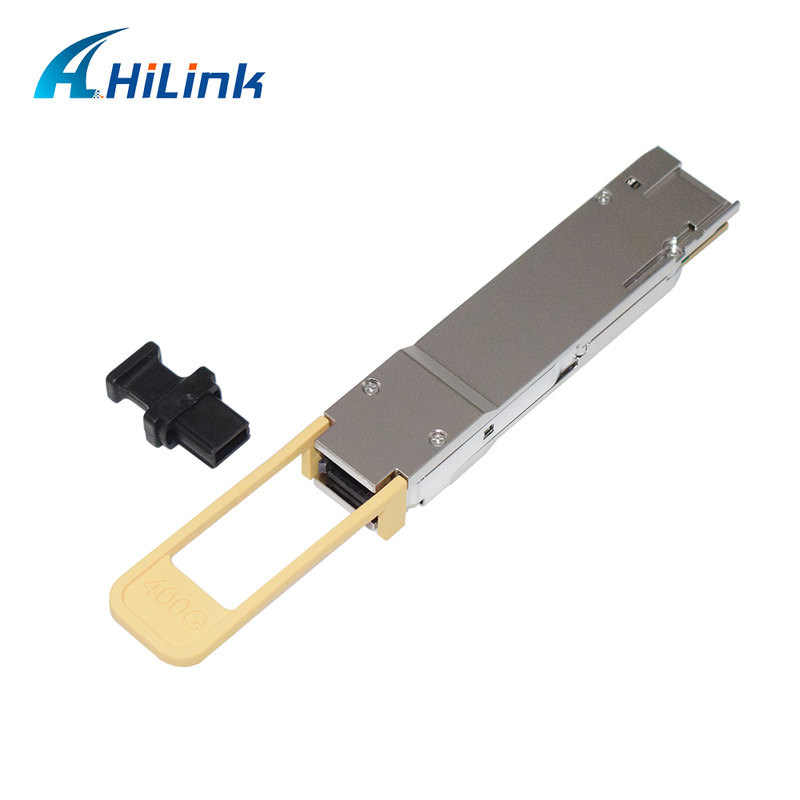

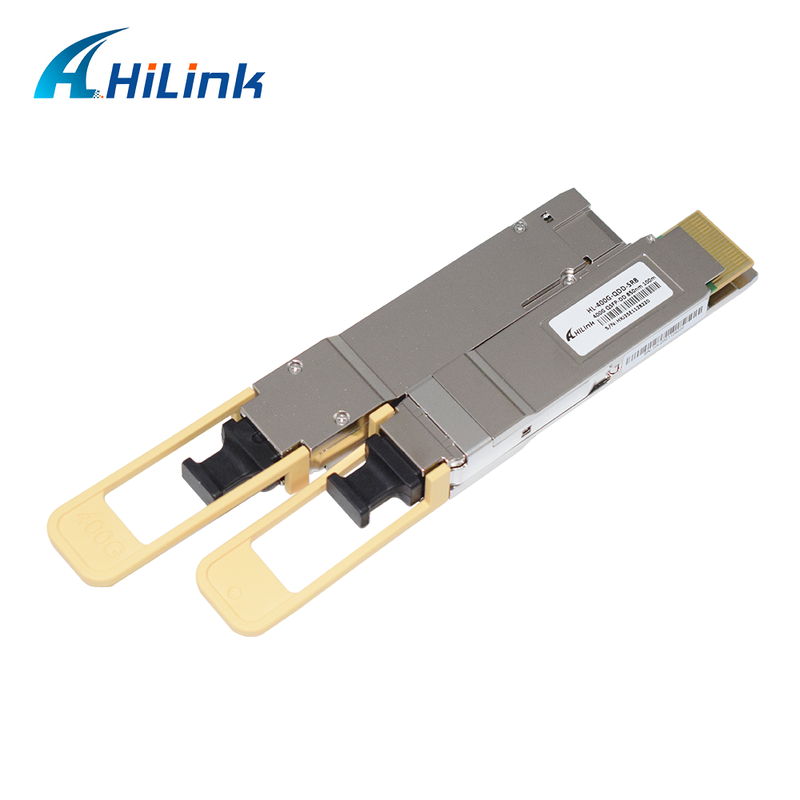

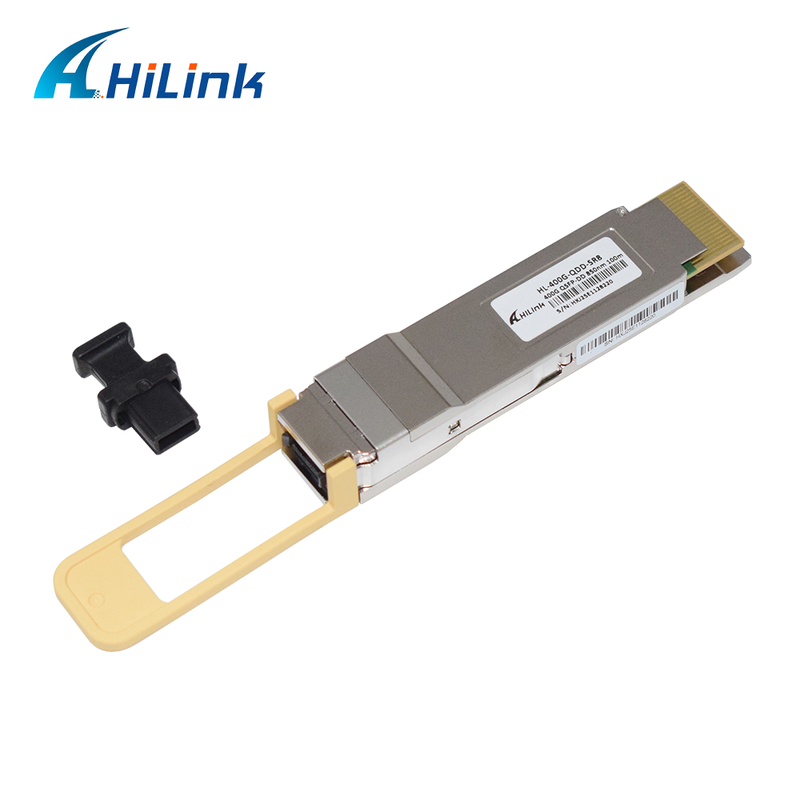

Hilink QDD-400G-SR8 Multi-mode 850nm 400G BASE-SR8 QSFP-DD Transceiver, With Diagnostic Monitoring

The QDD-400G-SR8 is an 8-channel, pluggable, fiber-optic QSFP-DD transceiver designed for 400Gbps SR8 applications. This high-performance module supports short-range data communication and interconnect applications, operating at 53.125Gbps per lane up to 70m using OM3 fiber and 100m using OM4 fiber. The optical interface uses MPO receptacles, while the electrical interface employs a 76-contact edge-type connector.

Key Features

Hot-pluggable QSFP-DD form factor
Data Rate: 53.125 Gb/s PAM4 per lane
8x53Gbps PAM4 transmitter and PAM4 receiver
8 channels 850nm VCSEL laser array and 8 channels PIN photo-detector array
Maximum link length of 70m on OM3 MMF and 100m on OM4 MMF
Digital diagnostics functions available via I2C interface
Single 3.3V Power Supply with Power Dissipation < 12W
MPO-16 connector
Operating Case Temperature: 0℃ to +70℃
RoHS compliant

Applications

400G BASE-SR8 Ethernet

Company Information

OEM/ODM orders are available upon request.

Quality Guarantee

We guarantee that all advertised optical transceivers are brand new with new components and absolutely never use old or refurbished materials. All optical transceivers undergo functional testing and aging tests. We provide a 3-year warranty for all optical transceivers from the date of shipment.

Product Portfolio

We supply a comprehensive range of compatible optical transceiver modules, including SFP, GBIC, SFP+, XENPAK, X2, XFP, BIDI, CWDM, DWDM, and other special transceiver modules. Our products are compatible with most major brands. For detailed compatibility information, please contact us.

Frequently Asked Questions

Do you sell second-hand products?
No. All our products are brand new, and we never use second-hand components.
What payment terms do you accept?
We accept T/T, PayPal, and Western Union.
What shipping methods do you offer?
Our standard shipping methods include DHL, FedEx, TNT, UPS, and EMS. Delivery typically takes 3-7 days.
Do your products come with warranty?
Yes, we provide a 3-year warranty for all our products from the date of shipment.
What devices are your products compatible with?
Our products are compatible with mainstream network switches and equipment.
How to place an order?
1. Confirm order details - provide the model and quantity you need
2. Confirm Proforma Invoice - we'll arrange your order upon receipt of payment
3. Confirm and ship goods - tracking number will be sent promptly
4. We'll help track your shipment until safe delivery
